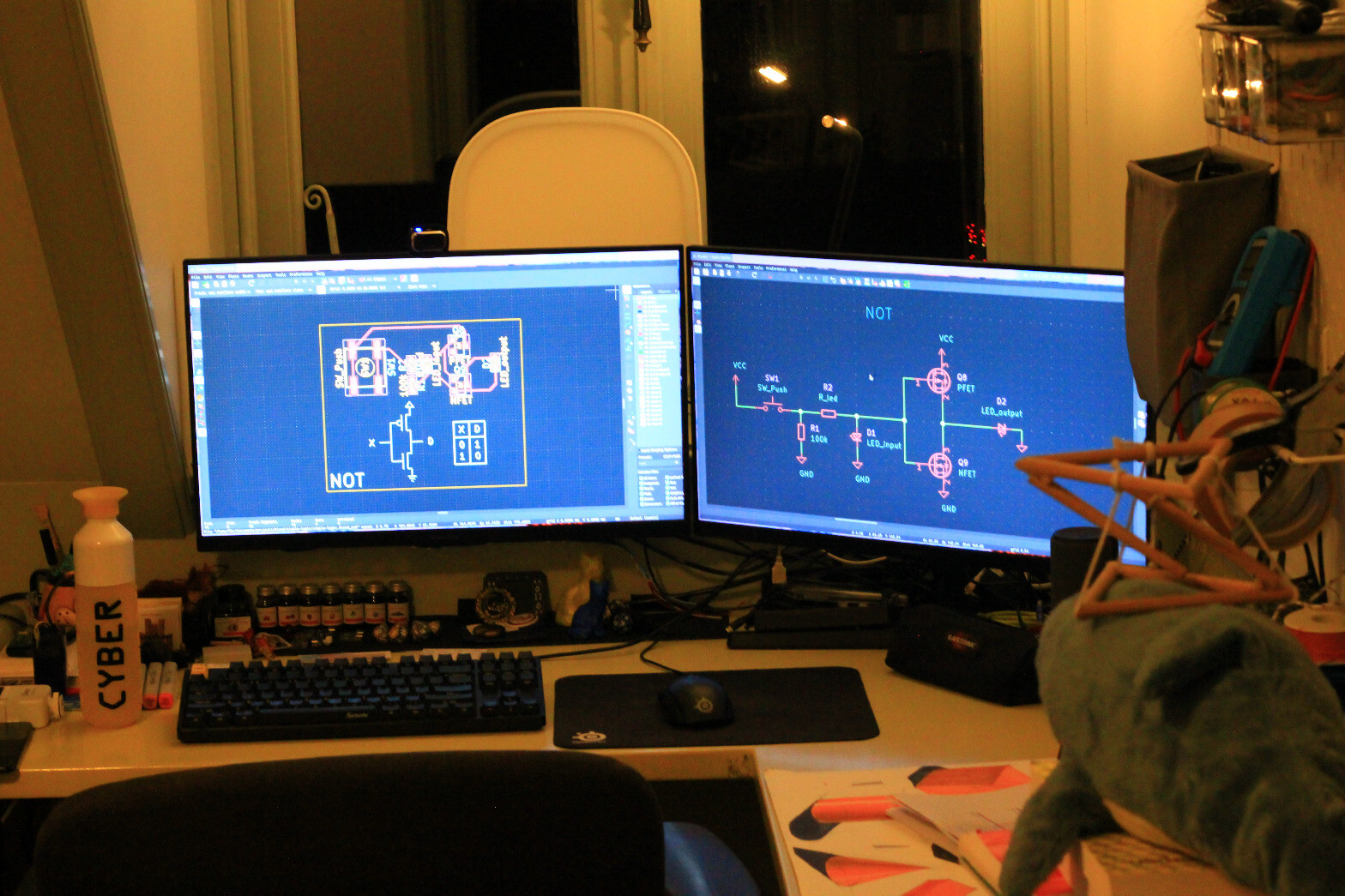

i spent basically this whole afternoon completing this shit assembly, everything about it sucks

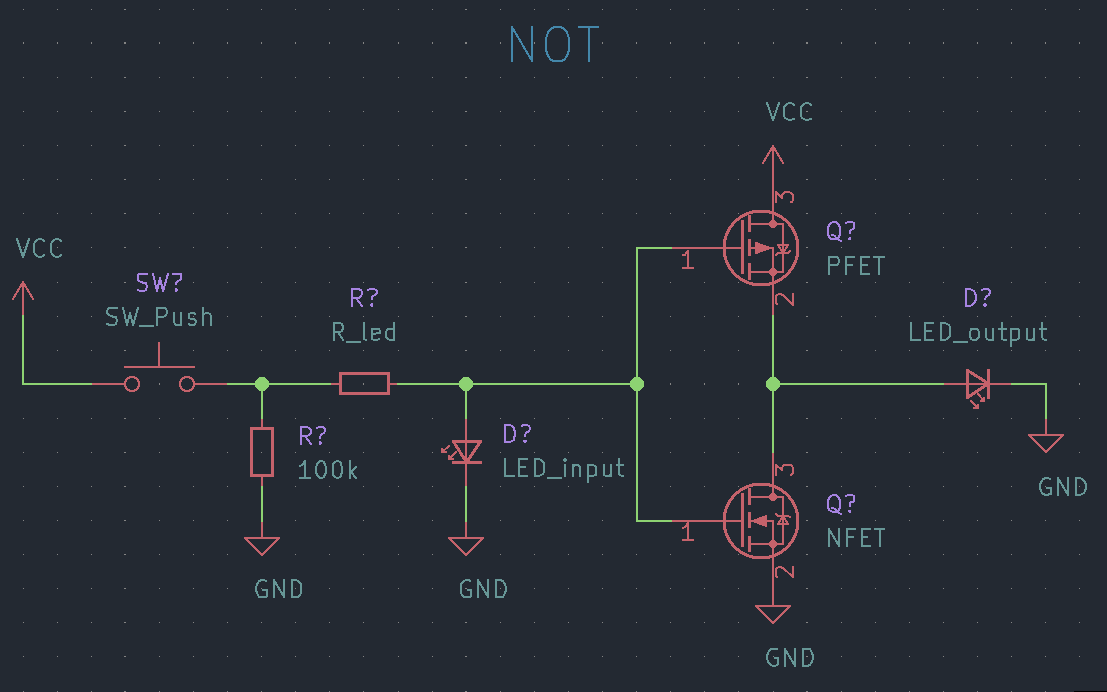

i have no clue if this will actually work out, but it should be a good way to get an input from button, visualized with 1 led (blue), with output visualized by another (green)

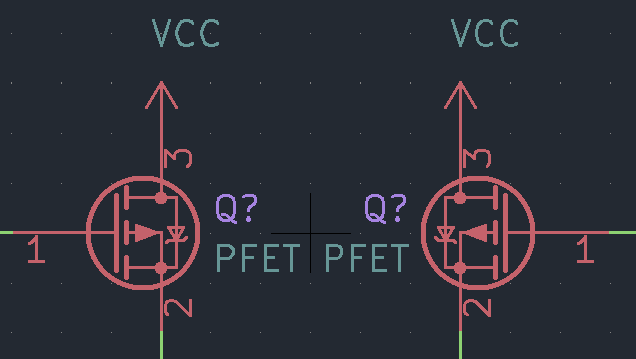

so the most annoying thing putting this into an educational + aesthetic pcb form is that to make the schematics pretty you mirror the mosfet symbols, but you can't do that with real ones unless you find ones with different pinout (oh and added issue, the most common pinout has gate, source on one side and drain on the other, mismatch with the common directions the pins point in symbol-wise)
